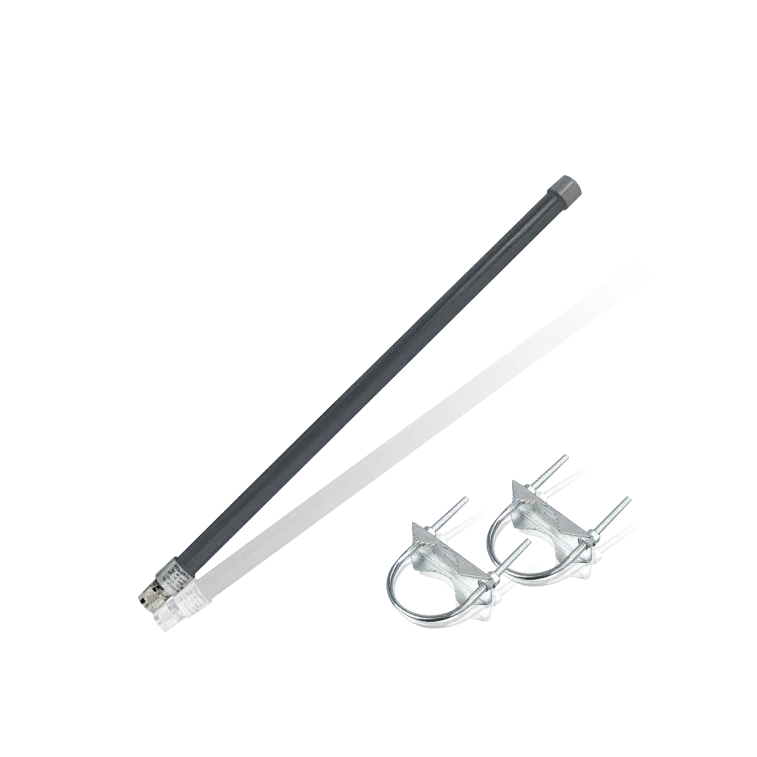

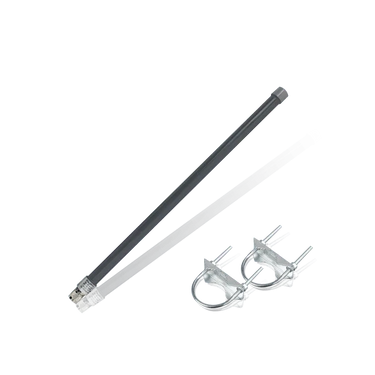

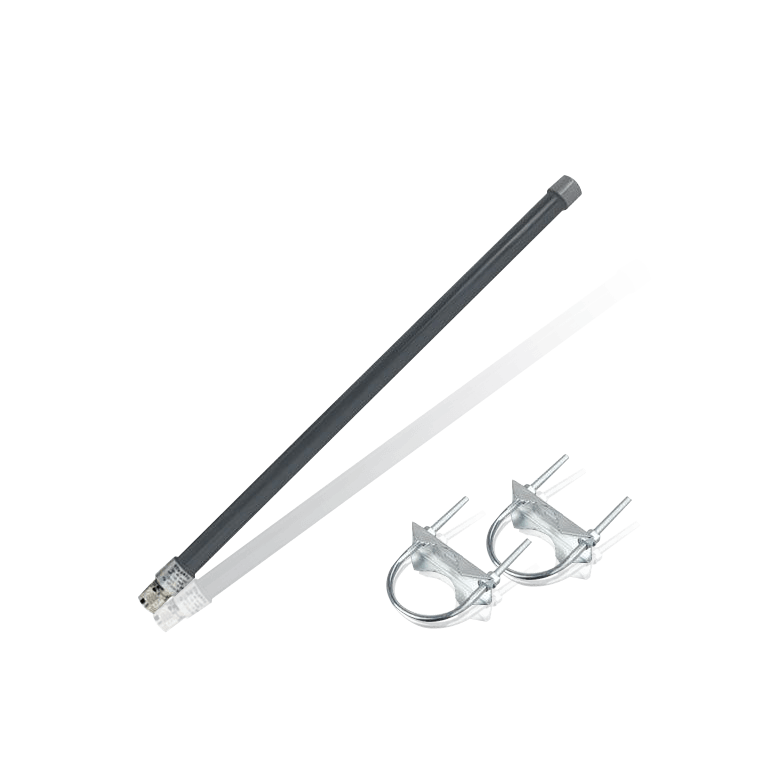

McGill Microwave 6dBi Tuned Antenna

• SKU: MM-ANT-NM-915-6DBI
• Antenna Connector: N Male

• Frequency Range: 902 – 929 Mhz
• Gain: 6dBi
• Size: 550mm

McGill Microwave Systems introduce the 6dBi High Performance Antennas for use with the Helium Network offering superior Power Transmission compared to other commercially available alternative non optimised VSWR Antenna designs.

This new Antenna design has been specifically tuned to operate with peak performance over only the frequency band of interest to USA/Canada Helium Hotspot operators – the US915 & AU915 frequency band.

Most commercially available Helium Hotspot Antenna designs available today are designed to be universal – meaning that the one product has been designed to cover both the 868 MHz and 915MHz Frequency bands – resulting in designs which may be non-optimised for either frequency range.

We also have different optimised products with tuned peak performance for the different European EU868 Frequency Band for UK/European customers.

These optimised Antennas feature a superior VSWR performances of 1.5:1 maximum – which immediately results in over +7% more transmitted, non-reflected Power from your Antenna and reduced Mis-match loss when compared to many of the commercially available 2:1 VSWR performance.

Antenna designs combined with an excellent 56 +/- 1 degrees (3dBi) signal radiation footprint.

You will receive:

• 1x Antenna
• 1x Mounting brackets

Documentation: McGill Microwave 6dBi Tuned Antenna
