Bernina Standard/Zig Zag Stitch Plate - Sewing Machine

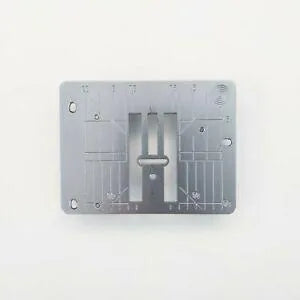

The Bernina Standard/Zig Zag Stitch Plate covers the stitching area while leaving openings for the feed dogs and needle, supporting everyday sewing with the appropriate stitch width for your machine. Also called a needle plate or throat plate, it is available in model-specific 5.5 mm and 9 mm options.

Choose the plate for your exact machine model and intended stitch width before ordering.

Key Features:

• Everyday Stitching — Standard/zigzag plate options for utility sewing, selected to suit your machine and stitch width.
• Model-Specific Design — Needle and feed-dog openings vary by machine model; plates are not interchangeable simply because their stitch widths match.
• 5.5 mm and 9 mm Options — Select the appropriate model and width from the variant selector above.
• Easy Cleaning Access — Removable plate provides access to the feed-dog area for cleaning. Follow your machine manual for removal and refitting.
• B990 Sensor Options — Listed choices include a 9 mm plate with sensor and a 5.5 mm BSR needle plate with sensor.

Choose the Correct Plate:

Match your exact machine model, plate width and part number using the tables below and the variant selector above. Entries marked NLA are identified as no longer available. A narrower plate does not permit wider stitches; check your stitch settings and machine manual before sewing.

Product images may vary slightly from the plate supplied for your model.

Compatible Machines and Part Numbers:

1000-1530				001633.72.01
1630 (9mm) - NLA				NLA 006036.70.01
130 - 170 - NLA				NLA 007874.71.00
125/135/145				030202.50.00
450/560/580/640 (9mm) - NLA				NLA 031051.70.01
180/185/200/730 (9mm)				007929.71.00
210-240/3 series/430/440/530/550				033546.71.01
435/475/535/720 (5.5mm)				034019.70.06
710/750/780 (9mm)				034019.70.00
740/770/790/590/570/480 (9mm)				034019.70.07
8 series (9mm)				032100.70.00



1630 (5.5mm)				006216.70.01
640/560/580/450 (5.5mm)				031045.70.01
180/185/200/730 (5.5mm) - NLA				NLA 033339.72.11
710/750/780/740/770/790 (5.5mm)				033339.70.08
8 series (5.5mm)				034915.70.00
B990 (9mm) with sensor				036801.70.07
B990 BSR needle plate with sensor, 5.5mm				109106.70.00
